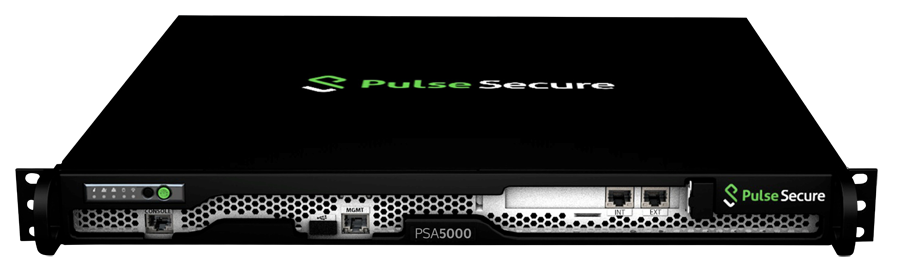

Pulse Secure Appliance 5000
Next-Generation Multi-service Secure Appliance for Medium to Large Size Enterprise Customers


Pulse Secure Appliance 5000

Pulse Secure Appliance
Pulse Secure PSA Platform
Pulse Secure Appliance 5000 Base System
#PSA5000
Our Price: $8,000.00

Click here to jump to more pricing!

Overview:

Today’s digital world has created new business models and opportunities while challenging the traditional IT networking frameworks with the transformational concepts and buzzwords like BYOD, Public/Private Cloud, and Hybrid IT. Some key market indicators defining the digital demand for anytime access:

  • Increasingly mobile employees “are not at their desk 50-60 percent of the time.”
  • 95% of enterprise using cloud.
  • Hybrid cloud adoption rose from 58% in 2015 to 71%.

Transformation trends, like the growing number of endpoints whether managed or unmanaged with access to applications and data, are driving the need for the next generation of secure access solutions. Purpose-built for Pulse Secure advanced security services, the new Pulse Secure Appliance (PSA) Series offer comprehensive visibility into endpoints for faster troubleshooting and reporting, while driving more efficient network operations and connectivity, regardless of device, network, or location.

Problems We Solve

  • High-Performance Hardware
    Impressive performance, scalability, and security to meet increasing networking demands.
  • Dual-Personality Services
    Multi-service appliance purpose-built for Pulse Connect Secure (SSL VPN) and Pulse Policy Secure (NAC).
  • Reduced Time to Service
    Designed with users in mind, easy to configure, install, and deploy out-ofthe box.
  • Superior Support
    Backed by a world-class technical support and threat research team.

Next Generation Secure Access for Mobility and Beyond

The Pulse Secure Appliances deliver SSL VPN connectivity or network access control (NAC) via a single high-performance platform. These purpose-built appliances provide a single point of convergence for managing the secure network connectivity and access challenges of a mobile, always-connected workforce. In conjunction with the Pulse Secure Client, the Pulse Secure Appliances lower OPEX and CAPEX by reducing the number of appliances and servers needed to deliver and control secure network access regardless of a user’s location or device.

VPN or NAC on the platform


VPN or NAC on the platform
Pulse Connect Secure (VPN) or Pulse Policy Secure (NAC) on a single appliance with Pulse Client access

AAA Integration


AAA Integration
Works with existing authentication/authorization schemes including AD, LDAP, RADIUS, RSA, SAML, Certificate, OTP

Simplified User Experience


Simplified User Experience
Creates a simplified user experience for consistent, secure, remote, and extensible access to corporate network and cloud resources

Flexible Factors


Flexible Factors
Protect networks of all sizes with multiscale performance and a wide range of form factors

Secure Access-Ready Platform

Pulse Secure’s 3rd Generation is purpose-built for next-generation Secure Access.

Strategic Initiatives Checklist


PSA300/PSA3000

PSA300/PSA3000

PSA300/PSA3000 are small formfactor secure access devices for small to medium size business customers.


PSA5000

PSA5000

PSA5000 is a robust secure access appliance for medium to large size enterprise customers.

PSA7000c/f

PSA7000c/f

PSA7000c/f is for the complex needs of large enterprise customers and government agencies.

Features:


Performance Boost


Performance Boost
Pulse secure appliances offer 3x performance of existing hardware platforms.

Dual Personality VPN + NAC


Dual Personality VPN + NAC
Purpose built for Pulse Connect Secure and Pulse Policy Secure.

Rock Solid Engineering


Rock Solid Engineering
Reliable and scalable for mission critical use.

Superior Support


Superior Support
Backed by our world-class technical support and threat research team.

Centralized Management


Centralized Management
Fully enabled for our cloud based central management platform Pulse One.

Experience Focused


Experience Focused
A simplified user experience for consistent, secure, remote, and extensible access to corporate network and cloud resources.

Flexible Form Factors


Flexible Form Factors
Protect networks of all sizes with multi-scale performance and a wide range of form factors.

AAA Integration


AAA Integration
Works with existing authentication/authorization schemes including AD, LDAP, RADIUS, RSA, SAML, certificate, OTP.


Specifications:


  PSA300 PSA3000 PSA5000 PSA7000
  PSA300 PSA3000 PSA5000 PSA7000
Form Factor Mini-ITX (6.7” x 6.7”) 1RU, Rack mountable 1RU, Rack mountable 2RU, Rack mountable
Functionality VPN or NAC VPN or NAC VPN or NAC VPN or NAC
Concurrent Connections* 200 SSL or 500 NAC 200 SSL or 500 NAC 2,500 SSL or 10,000 NAC 25,000 SSL or 50,000 NAC
Throughput* 200 Mbps 200 Mbps 1 Gbps 10 Gbps
RAM 4 GB 8 GB 8 GB 32 GB
Hard Drive 120 GB 500 GB 500 GB Hot swap and redundant 1 TB
Encryption Data Acceleration (AES-NI) None None None Yes
Interfaces 2 x 1 Gigabit Ethernet traffic ports 2 x 1 Gigabit Ethernet traffic ports 2 x 1 Gigabit Ethernet copper traffic ports 2 x 10 Gigabit Ethernet copper (fiber*) traffic ports; Link redundancy on both copper (fiber*) ports
Dimensions (W x H x D) 7.68 x 1.75 x 7.68 in
(19.5 x 4.45 x 19.5 cm)
17.2 x 1.7 x 9.8 in
(43.7 x 4.3 x 24.9 cm)
17.2 x 1.7 x 9.8 in
(43.7 x 4.3 x 24.9 cm)
17.2 x 3.5 x 17.7 in
(43.7 x 8.9 X 45 cm)
Dedicated Management Port None Yes (1 GE) Yes (1 GE) Yes (1 GE)
Serial Port RJ-45 console RJ-45 console RJ-45 console RJ-45 console
Weight 2.5 lbs (1.13 kg) 10 lbs (4.5 kg) 10 lbs (4.5 kg) 30 lbs (13.6 kg)
Power Supply 60W 200W 200W Dual 700W
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) 0°C ~ 40°C (32°F ~ 104°F) 0°C ~ 40°C (32°F ~ 104°F) 5°C ~ 35°C (41°F ~ 95°F)
Safety, EMI and EMC Certifications USA : TuV SUD
Canada: TuV SUD
European Union CE
Worldwide IEC 60950 CB Scheme
Japan VCCI
USA : TuV SUD
Canada: TuV SUD
European Union CE
Worldwide IEC 60950 CB Scheme
Japan VCCI
USA : TuV SUD
Canada: TuV SUD
European Union CE
Worldwide IEC 60950 CB Scheme
Japan VCCI
USA : TuV SUD
Canada: TuV SUD
European Union CE
Worldwide IEC 60950 CB Scheme
Japan VCCI

* With Pulse Connect Secure 8.2 & Pulse Policy Secure 5.3
** Reference to 7000f only

Benefits of Upgrading to PSA Series Appliances:


Higher Scale

Higher Scale

Less units to rack, power, configure, and run to support same # of tunnels

Updated Components

Updated Components

Faster CPUs + More Memory/Storage

Increased Throughput

Increased Throughput

Better productivity

Flexible Deployment

Flexible Deployment

Small form-factor appliance for small to medium size business customers is available as a stand-alone (PSA300) or rack-mountable (PSA3000)


  SA4500 SA6500 MAG2600 MAG4610 SM160 SM360 PSA300/
PSA3000
PSA5000 PSA7000c/f
Max Concurrent Users (SSL) 1,000 10,000 100 1,000 1,000 10,000 200 2,500 25,000
Max Tunnel Throughput (ESP Mode) 200 Mbps 400 Mbps 50 Mbps 100 Mbps 100 Mbps 900 Mbps 200 Mbps 1 Gbps 4.2 Gbps
Max Tunnel Throughput (SSL Mode) 100 Mbps 180 Mbps 32 Mbps 40 Mbps 40 Mbps 500 Mbps 100 Mbps 550 Mbps 2.8 Gbps
Max Concurrent Users (NAC) N/A N/A 250 5,000 5,000 35,000 500 10,000 50,000
Login Rate (Users / Sec) N/A N/A N/A 20 20 40 20 50 115
RAM 2 GB 4 GB 2 GB 2 GB 2 GB 4 GB 8 GB 8 GB 32 GB
Interfaces 2 x 1GbE 4 x 10 GbE*
+ 1 x 1 GbE
2 x 1GbE 3 x 1GbE 3 x 1GbE 3 x 1GbE 3 x 1GbE 3 x 1GbE 4 x 10 GbE*
+ 1 x 1 GbE
Power Supply Single Dual
(Optional)
Single Single Dual
(Optional)
Dual
(Optional)
Single Single Dual
(Standard)

Note that these performance metrics are measure in a lab environment using industry-standard performance tools. Production performance will vary based on the complexity of the configuration.

Rethink High Performance Security with Pulse Secure

The multi-service security appliance offers IT business results while protecting the value of network applications and services. Along with the industry-recognized Pulse Connect Secure (SSL VPN) and Pulse Policy Secure (NAC), the Pulse Secure Appliance Series delivers simplified and scalable network management that improves operations efficiency, reduces errors, speeds troubleshooting, and lowers the total cost of ownership.

Documentation:

Download the Pulse Secure Appliance Series Datasheet (.PDF)



Pulse Secure PSA Platform
Pulse Secure Appliance 5000 Base System
#PSA5000
Our Price: $8,000.00
Pulse Secure Profiler
Pulse Secure Profiler with max 10,000 devices for PSA5000, PSA7000 or Virtual Platform
Includes RADIUS Server capability
#PS-PROFILER-MD
Our Price: $19,000.00
Pulse Secure Profiler Gold Supports and Subscriptions
1 Year Pulse Gold Support for Pulse Secure Profiler - Medium
#PAR-PS-GLD-PRFL-MD
Our Price: $3,800.00
3 Year Pulse Gold Support for Pulse Secure Profiler - Medium
#PAR-PS-GLD-PRFL-MD-3YR
Our Price: $10,450.00
5 Year Pulse Gold Support for Pulse Secure Profiler - Medium
#PAR-PS-GLD-PRFL-MD-5YR
Our Price: $15,390.00
Pulse Secure Profiler Platinum Supports and Subscriptions
1 Year Pulse Platinum Support for Pulse Secure Profiler - Medium
#PAR-PS-PLN-PRFL-MD
Our Price: $5,700.00
3 Year Pulse Platinum Support for Pulse Secure Profiler - Medium
#PAR-PS-PLN-PRFL-MD-3YR
Our Price: $15,390.00
5 Year Pulse Platinum Support for Pulse Secure Profiler - Medium
#PAR-PS-PLN-PRFL-MD-5YR
Our Price: $22,800.00
Accessories and Part Replacements
Power Cable, C13, Spare
#PSA-SPR-PWR-CBL-US
Our Price: $60.00
Rack Mount Rail Kit 2RU
#PSA-RK2U
Our Price: $250.00
